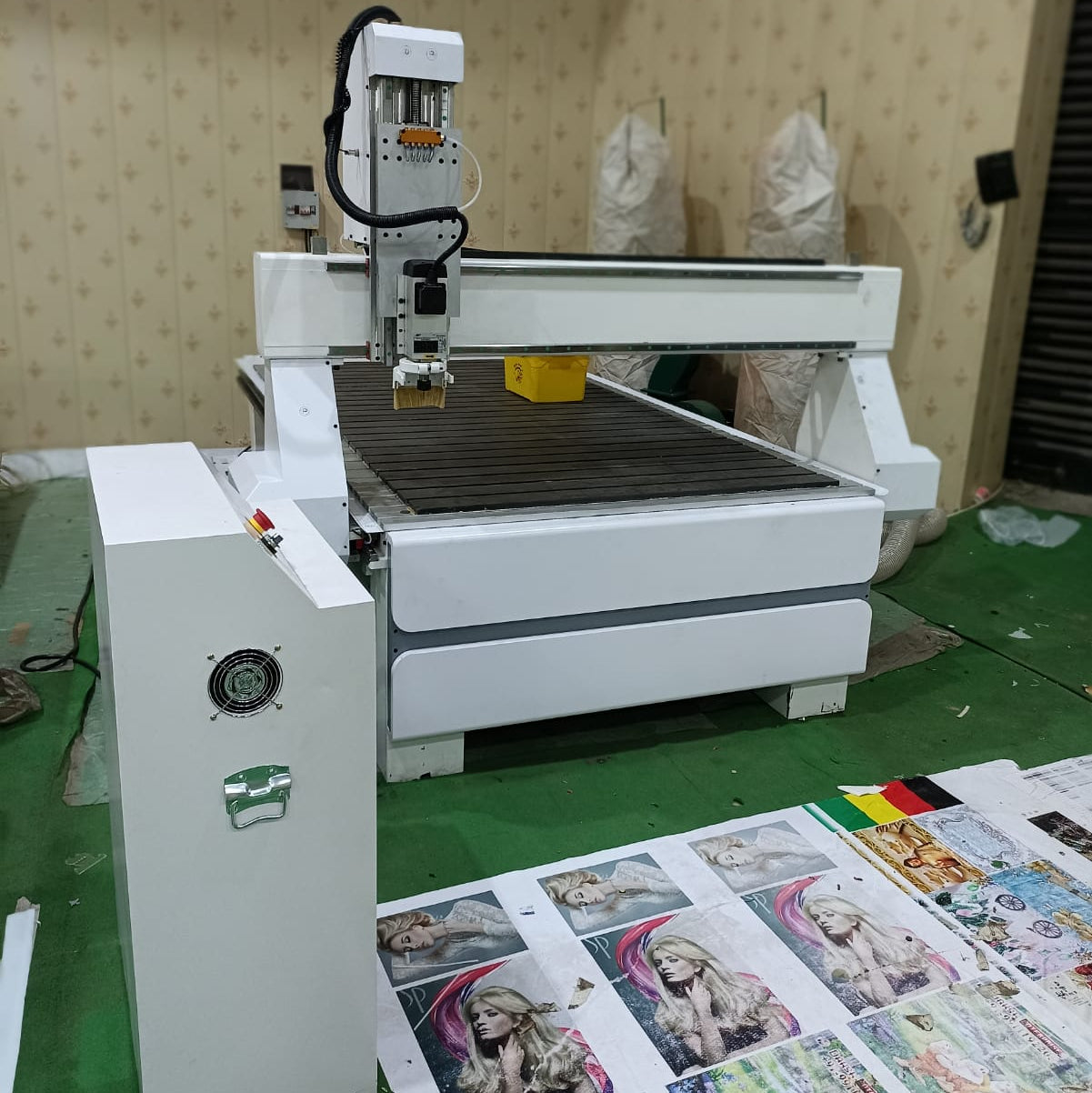

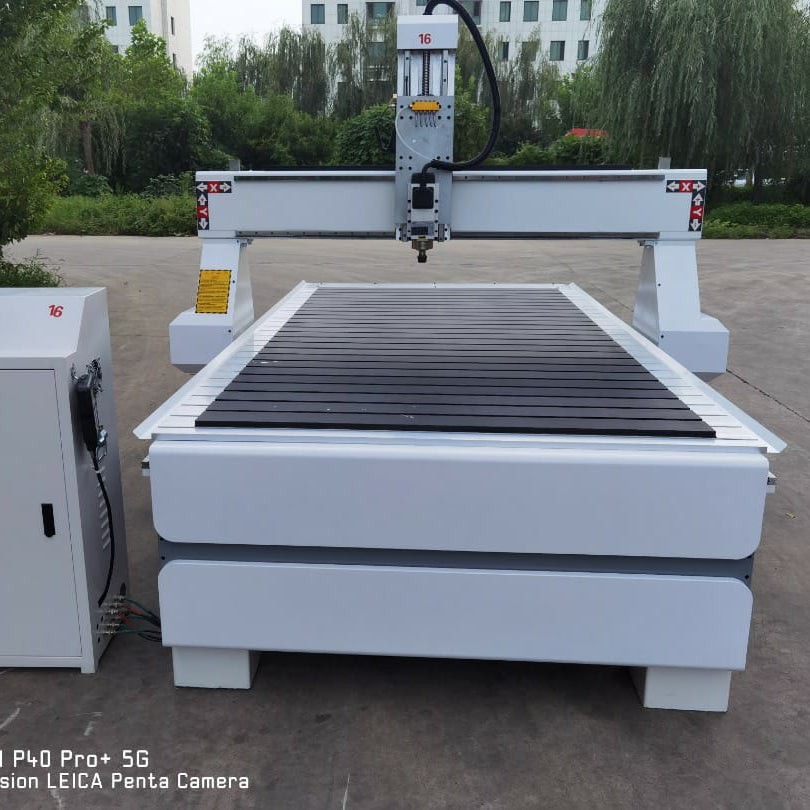

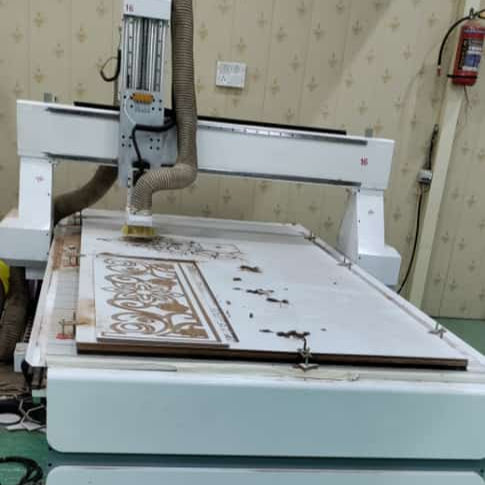

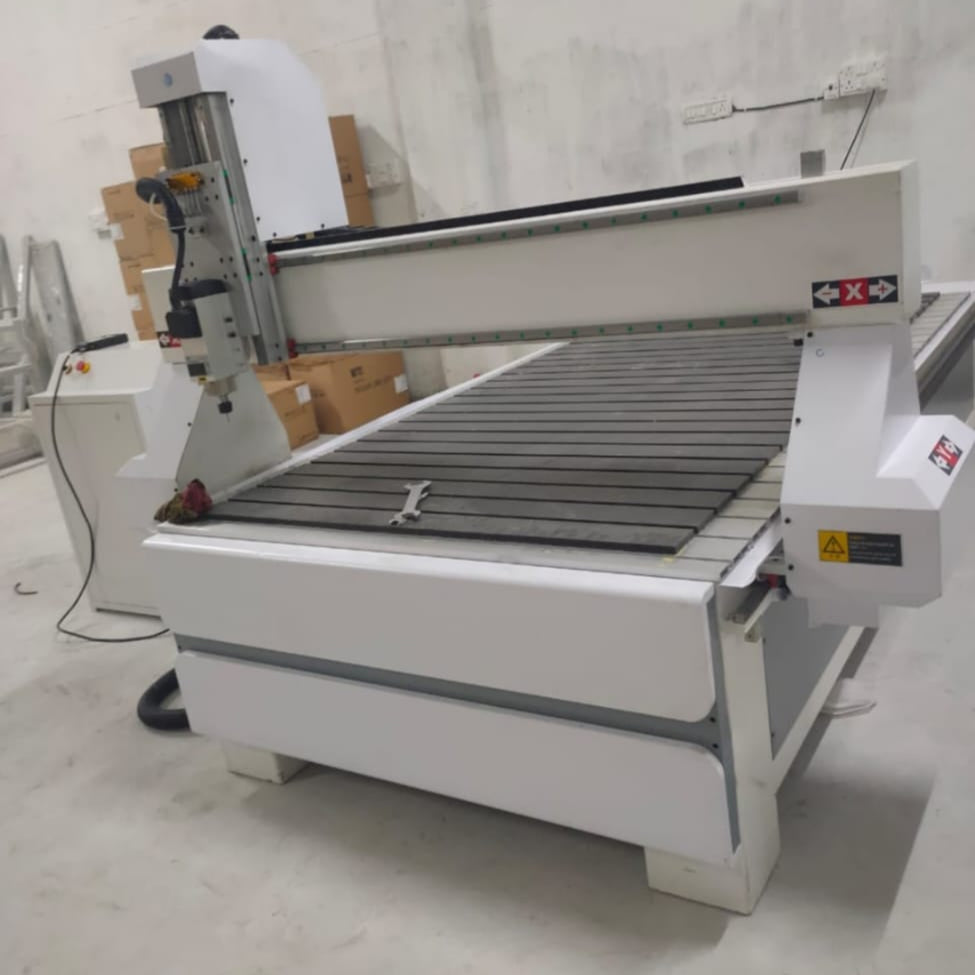

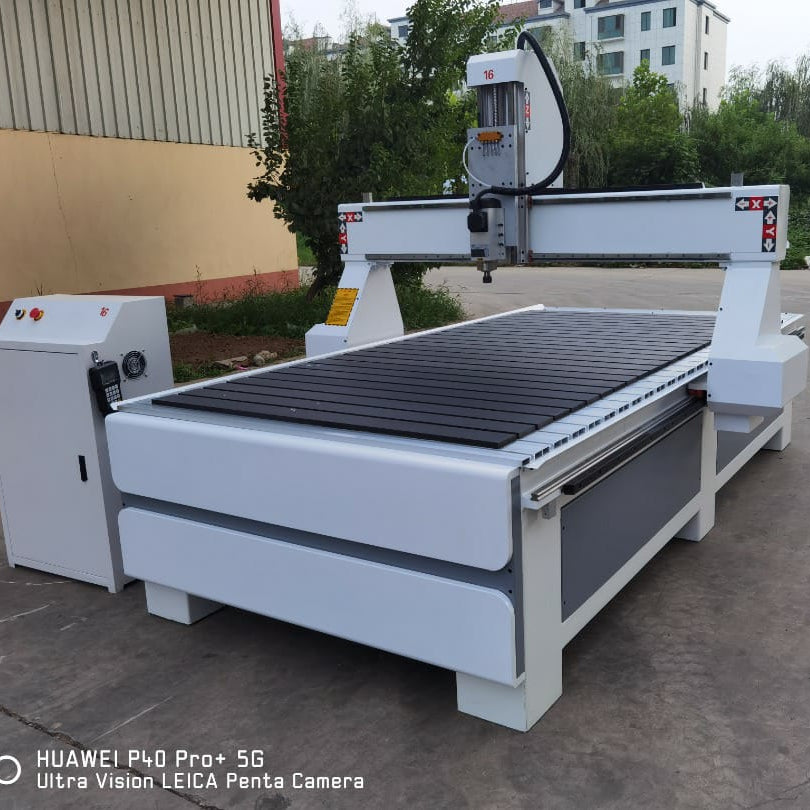

High-Precision CNC Router Machine for Wood, MDF, and Acrylic Design And Cutting

This advanced CNC Router Machine is designed for high-precision cutting, engraving, and shaping of materials like MDF, plywood, acrylic, and other soft materials. Ideal for signage, furniture, panel processing, and customized product manufacturing, it features a strong steel frame, vacuum bed, and high-speed spindle for smooth and efficient operations. Equipped with a user-friendly control panel and industrial-grade stability, it ensures consistent results even in long production runs.

✅ Heavy-duty structure
✅ High-speed spindle motor with Stepper motor
✅ Precision X, Y, Z axis movement
✅ Ideal for woodworking, signage, and laser cutting businesses
✅ Compatible with various design file formats (e.g., .dxf, .plt, .ai)



---

✅ Frequently Asked Questions (FAQs) – CNC Wood Router

1. What materials can I cut with this CNC router?

Our CNC wood router is ideal for cutting and engraving MDF, plywood, hardwood, softwood, acrylic, PVC, ACP, foam board, and more.

---

2. What is the table size or working area?

The standard size is typically 1300x2500mm (4x8 feet). Other custom sizes are also available on request.

---

3. What software is required to operate the machine?

You can use CAD/CAM software like ArtCAM, VCarve, Aspire, CorelDRAW, or AutoCAD. The controller usually supports files like .dxf, .plt, .nc, and .ai.

---

4. Is training or installation support provided?

Yes, we provide full training, either on-site or online, along with installation guidance and technical support.

---

5. What power supply is needed?

Generally, a 3-phase 380V or single-phase 220V power supply is required. It depends on the spindle power and machine configuration.

---

6. How much power does it consume?

Power consumption depends on the spindle size and vacuum pump but usually ranges between 3kW to 7kW per hour during operation.

---

7. What is the spindle power and speed?

Standard machines come with 3kW to 6kW air-cooled or water-cooled spindles with speeds up to 24,000 RPM.

---

8. What is the machine’s accuracy and repeatability?

Our CNC routers offer ±0.05 mm accuracy, making them perfect for detailed and fine work.

---

9. Do I need an air compressor or vacuum pump?

Yes, depending on the model, a vacuum pump is needed for holding the material. An air compressor is required if the machine has a pneumatic tool changer or dust cleaning system.

---

10. How long is the delivery time?

Delivery is usually within 7–15 working days after order confirmation.

---

11. Is there a warranty and after-sales support?

Yes, we offer 1-year warranty on parts (excluding consumables) and lifetime technical support.

---

12. How can I get spare parts or service support?

We keep stock of all key spare parts. You can contact us anytime, and we will ship the part or guide you via video or call.

---

13. What is the machine's life expectancy?

With regular maintenance, a CNC wood router can last 10+ years, offering high ROI for your business.

---

14. Can I upgrade the machine in the future?

Yes, features like dust collectors, rotary axis, tool changers, and upgraded spindles can be added later.

---

15. Can it work continuously for 8–10 hours a day?

Absolutely. Our industrial CNC routers are built to work in continuous production environments with cooling and stability.
